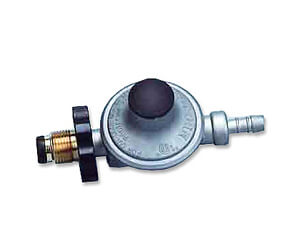

| -- BBQ REGULATOR -- |
| Name:Type:8307 |
|
| |
| Description: |
| MODEL |
8307 |
Inlet Pressure
|
MIN 25 PSI. MAX 250PSI |
Outlet Pressure
|
300mmH2O (12" W.C) |
Flow Capacity
|
2Kg/hr 95200BTU/hr |
Inlet Spec
|
L22.5W14 |
| Outlet Specs |
3/8"(11.5) |
|
| |
|
 |
| |
| -- BBQ REGULATOR -- |
| Name:Type:8307-LP-1 |
|
|
| |
| Description: |
| MODEL |
8307-LP-1 |
Inlet Pressure
|
MIN 25 PSI.MAX 250PSI |
Outlet Pressure
|
300mmH2O (12" W.C) |
Flow Capacity
|
2Kg/hr 95200BTU/hr |
Inlet Spec
|
L3/8"-19(F) |
| Outlet Specs |
3/8"-19(F) |
|
| |
|
|
| |
|
| -- BBQ REGULATOR -- |
| Name:Type:8307-LP-2 |
|
| |
| Description: |
| MODEL |
8307-LP-2 |
Inlet Pressure
|
MIN 25 PSI.MAX 250PSI |
Outlet Pressure
|
300mmH2O (12" W.C) |
Flow Capacity
|
2Kg/hr 95200BTU/hr |
Inlet Spec
|
15/16" ACME |
| Outlet Specs |
5/8" UNF(F) |
|
| |
|
|
| |
| -- BBQ REGULATOR -- |
| Name:8307-P |
|
|
| |
| Description: |
| MODEL |
8307-P |
Inlet Pressure
|
MIN 25 PSI.MAX 250PSI |
Outlet Pressure
|
300mmH2O (12" W.C) |
Flow Capacity
|
2Kg/hr 95200BTU/hr |
Inlet Spec
|
L22.5W14 |
| Outlet Specs |
1/4"-19(F) |
|
| |
|
| |
